U-shaped gutters

The U-shaped gutter is the ideal solution for collecting and draining surface water, for example in car parks and on concrete floor slabs. Liquids from silos, manure storage areas or livestock buildings can also be efficiently drained.

The U-shaped gutter can be combined with a concrete cover slab, available perforated, slotted or solid, and in various thicknesses and load capacities. For widths of 40 and 50 cm, a reinforced galvanised steel grating suitable for heavy vehicle traffic is also available.

Easy to install
High-quality concrete
Efficient collection and drainage of surface water
Concrete cover slabs: perforated, slotted or solid
Also available with reinforced galvanised steel gratings

Back to overview Contact us

Technical data sheet
Characteristics/finish
related products

U-SHAPED GUTTERS

ARTICLE	H (cm)	Hn (cm)	L (cm)	W (cm)	Wn (cm)	LIFTING SYSTEM	CONNECTION	WEIGHT (kg)
10340	30	23	300	40	28	2x1,4T (FRIMEDA)	Tongue-Groove	425
10350	40	31	300	50	34	2x1,4T (FRIMEDA)	Tongue-Groove	750
10390	70	60	300	90	72	4x1,4T (FRIMEDA)	Tongue-Groove	1350
10320/70	70	60	300	120	96	4x2,5T (DEHA)	Tongue-Groove	1960
10320/130	130	120	300	120	100	4x2,5T (DEHA)	Tongue-Groove	2896

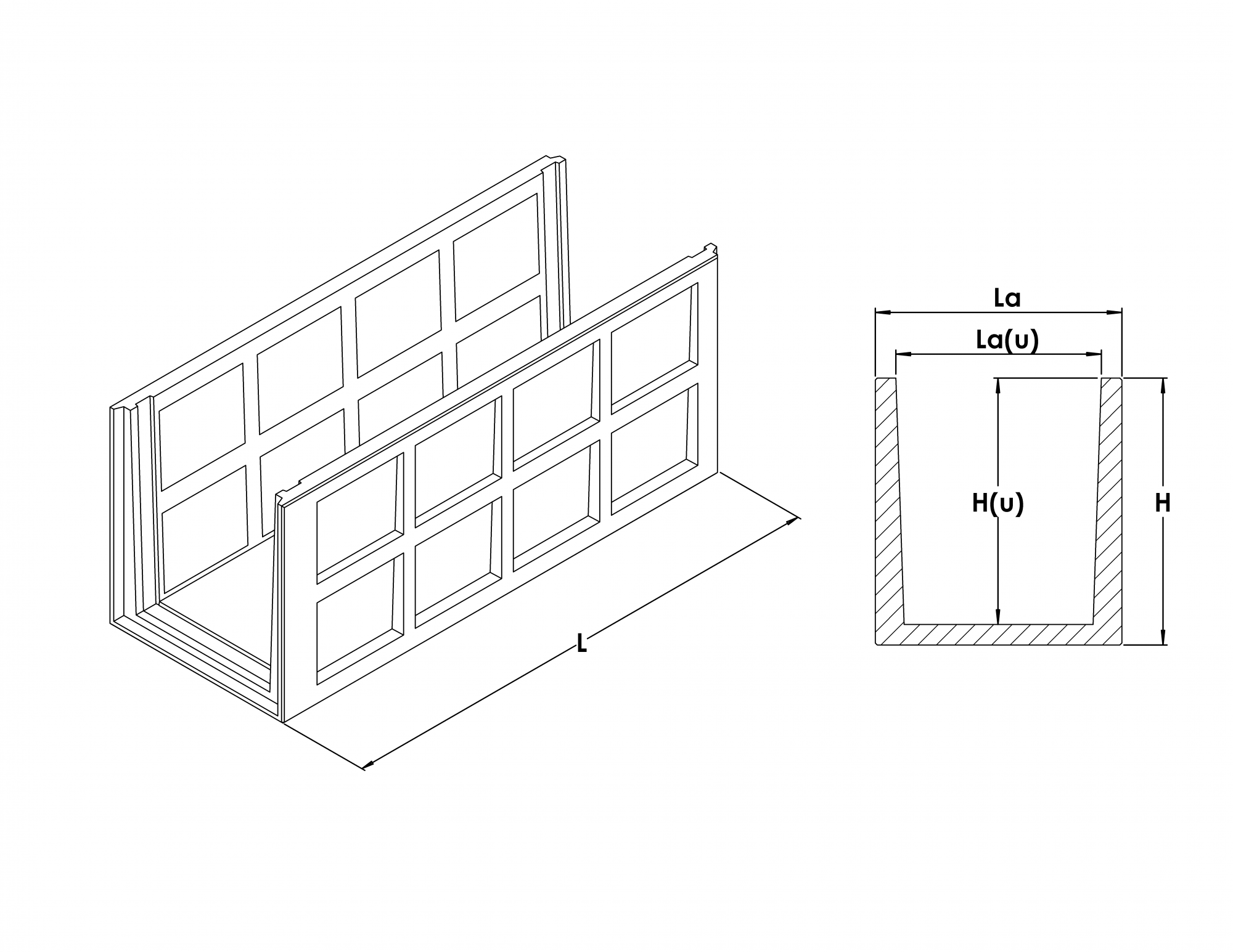

INFILTRATION GUTTERS

Buffer capacity per running metre:
10320/70-D: 0.550 m³
10320/130-D: 1,104 m³
Infiltration area per running metre:
10320/70-D: 0,721 m²
10320/130-D: 1,441 m²

ARTICLE	H (cm)	Hn (cm)	L (cm)	W (cm)	Wn (cm)	LIFTING SYSTEM (KKA)	CONNECTION	WEIGHT (kg)
10320/70-D	70	60	300	120	96	4X2,5T	Tongue-Groove	1530
10320/130-D	130	120	300	120	100	4X2,5T	Tongue-Groove	2150

COVER PLATES

ARTICLE	H (cm)	L (cm)	W (cm)	AXLE LOAD	FINISH	WEIGHT (kg)
11140	9	100	40	5 T**	Perforated	80
11940	9	100	40	5 T**	Slotted	80
11161	14	100	40	15 T***	Solid	140
11141	14	100	40	15 T***	Perforated	130
11941	14	100	40	15 T***	Slotted	130

11150	9	100	50	5 T**	Perforated	85
11950	9	100	50	5 T**	Slotted	90
11162	14	100	50	15 T***	Solid	175
11151	14	100	50	15 T***	Perforated	160
11951	14	100	50	15 T***	Slotted	136

11700	14	100	90	15 T***	Solid	308
11900	14	100	90	15 T***	Slotted	270
11090	14	100	90	15 T***	Perforated	270

11320	14	100	90	15 T***	Solid	400

Galvanized grid only available in finish with grooves
** Wheel print 30 x 40 cm with wheel base 180 cm
*** Wheel print 40 x 40 cm with wheel base 200 cm

U-shaped gutter end piece

ARTICLE	W (cm)	H (cm)	T (cm)	WEIGHT (kg)
10390-E	73/69	61,5	9	150
10320/70-E	100	62	10	145
10320/130-E	104	122	10	300

Our U-shaped gutters are produced in accordance with the specifications/characteristics mentioned below:

ARTICLE	CONCRETE TYPE	CONCRETE QUALITY	CONCRETE COVER
10318	Earth dry	C45/55	20 mm
10340	Traditional	C50/60	25 mm
10350	Traditional	C50/60	25mm
10390	Self-compacting	C60/67	35 mm
10320/70	Self-compacting	C60/67	35 mm
10320/130	Self-compacting	C60/67	35 mm

Our concrete cover plates are produced in accordance with the specifications/characteristics mentioned below:

CONCRETE TYPE	CONCRETE QUALITY	CONCRETE COVER	FINISH SURFACE
Self-compacting	C45/55	25 mm	Regrinded with coarse grain of sand
