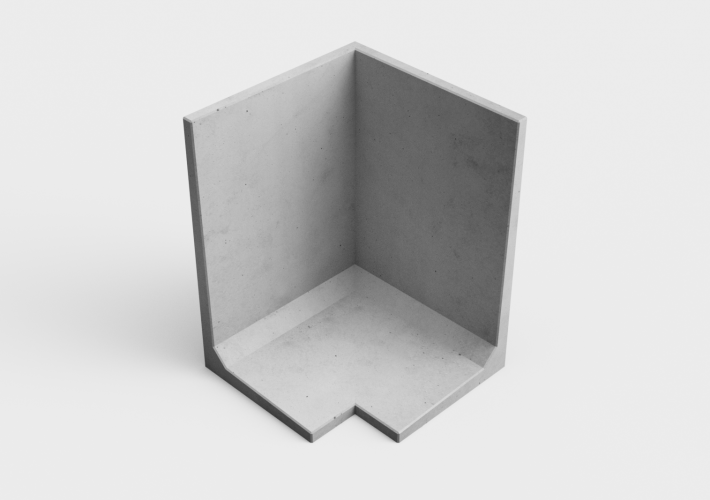

We provide following L-shaped solutions for our standard L-shaped retaining walls with, depending on the height, different widths.

- Flexibility
- Great stability
- Impeccable finish (self-compacting concrete)
- Thickness at the top is 9 cm for all elements
- Can perfectly be combined in tiers**

Back to overview Contact us Realisations

FIXED L-SHAPED PANELS

ARTICLEH(cm)W(cm)L1/L2(cm)D(cm)WEIGHT(kg)BACKLIFTING SYSTEMCONNECTION
HL60/1006059.5100/1009420Smooth3x2,5T (DEHA)
HL75/1007559.7100/1009485Smooth3x2,5T (DEHA)
HL100/10010060100/1009600Smooth3x2,5T (DEHA)
HL125/10012584.6100/1009780Smooth3x2,5T (DEHA)
HL150/10015085100/1009905Smooth3x2,5T (DEHA)
HL175/150175110150/15091820Smooth3x2,5T (DEHA)
HL200/150200110150/15092035Smooth3x2,5T (DEHA)
HL225/150225134.2150/15092745Smooth3x2,5T (DEHA)
HL250/150250135150/15093020Smooth3x2,5T (DEHA)

L-SHAPED PANELS CONSISTING OF TWO PARTS

ARTICLEH(cm)W(cm)L1/L2(cm)D(cm)WEIGHT(kg)BACKLIFTING SYSTEMCONNECTION
HL300/200300160200/20092655/2825Smooth2x2,5T (DEHA)Groove-groove
HL325/200325190200/200123850/4207Smooth2x5T (DEHA) + 3x5T (FRIMEDA)Groove-groove
HL350/200350190200/200123985/4350Smooth2x5T (DEHA) + 3x5T (FRIMEDA)Groove-groove
HL375/200375190200/200124120/4495Smooth2x5T (DEHA) + 3x5T (FRIMEDA)Groove-groove
HL400/200400190200/200124255/4637Smooth2x5T (DEHA) + 3x5T (FRIMEDA)Groove-groove
HL450/200450190200/200126175/6930Smooth4x10T (DEHA) + 3x10T (FRIMEDA)Groove-groove
HL475/200475190200/200126310/7070Smooth4x10T (DEHA) + 3x10T (FRIMEDA)Groove-groove
HL500/200500190200/200126445/7220Smooth4x10T (DEHA) + 3x10T (FRIMEDA)Groove-groove
HL525/200525190200/200126580/7365Smooth4x10T (DEHA) + 3x10T (FRIMEDA)Groove-groove
HL550/200550190200/200126715/7505Smooth4x10T (DEHA) + 3x10T (FRIMEDA)Groove-groove
HL575/200575190200/200126850/7650Smooth4x10T (DEHA) + 3x10T (FRIMEDA)Groove-groove
HL600/200600190200/200126986/7790Smooth4x10T (DEHA) + 3x10T (FRIMEDA)Groove-groove
Interior finishConcrete typeConcrete qualityLoadConcrete cover
SmoothSelf-compactingC55/67Single30 mm
