Ventilation slat

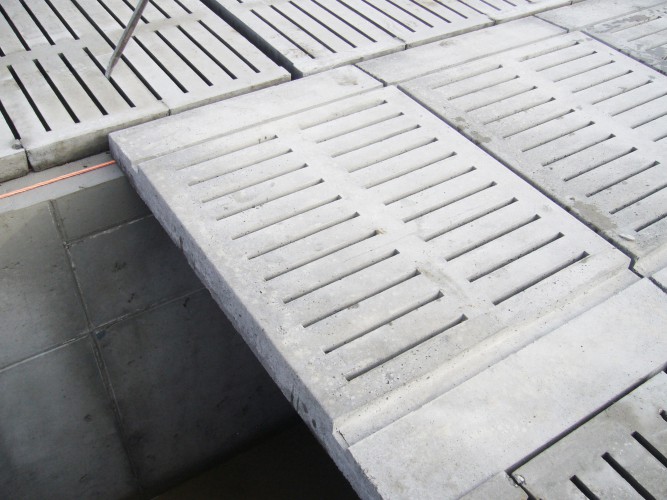

Ventilation slat
3 types of ventilation grids available
number of grids in function of the need of the air
if the air channel is wider than the service corridor, we provide a grid with an enclosed part (for corridors that are 110 or 120 cm wide).
Technical information
Characteristics/finish
ARTICLE
L (cm)
W (cm)
H (cm)
WEIGHT (kg/m2)
V60/50 to V150/50
from 60 cm to 150 cm increasing every 5 cm
50
10
165
ARTICLE
L (cm)
W (cm)
H1 (cm)
H2 (cm)
WEIGHT (kg/m2)
V140/100 to V200/100
from 140 cm to 200 cm increasing every 5 cm
100
10
12
240
ARTICLE
L (cm)
W (cm)
H (cm)
WEIGHT (kg/m2)
3560/gl10mm to 3650/gl10mm
from 60 cm to 150 cm increasing every 5 cm
50
70
165
CONCRETE TYPE
CONCRETE QUALITY
STEEL QUALITY
CONCRETE COVER
SURFACE FINISH
Earth dry
C45/55
DE500BS
25 mm
Regrinded with fine quartz sand
Back to overview
