Full plates

Full plates

Full plates

Full plates

Available in several thicknesses depending on the finish.
The full plates of 10 cm thick are ideal as corridor plate or sleeping-place for the sow.
Full plates of 7 cm thick are available in raw (to cast upon) or plain finish.
The full plates of 5 cm thick have to be cast upon.

Technical information
Characteristics/finish

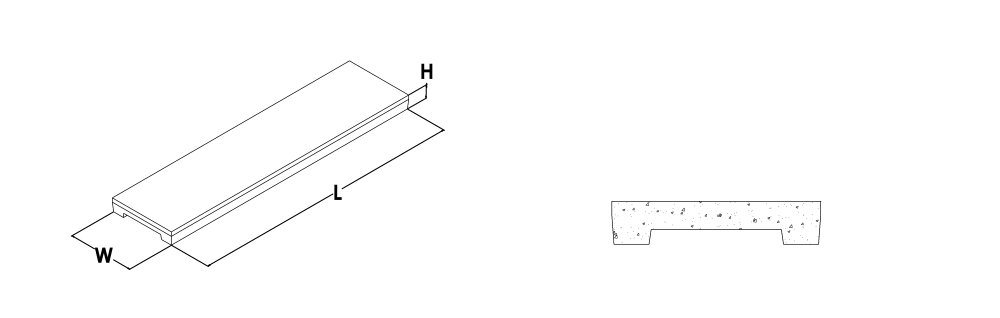

FULL PLATES 10 CM THICK

ARTICLE	L (cm)	W (cm)	H (cm)	WEIGHT (kg/m²)	SURFACE FINISH
70060 to 70250	From 60 up to and including 250 cm increasing by 5 cm	50	10	188	Regrinded with fine quartz sand

FULL PLATES OF 5 TO 7 CM THICK

ARTICLE	L (cm)	W (cm)	H (cm)	WEIGHT (kg)	SURFACE FINISH
3560/7 to 70200/7	From 60 up to and including 200 cm increasing by 5 cm	50	7	168	Regrinded with fine quartz sand / Raw (to be cast upon)

ARTICLE	L (cm)	W (cm)	H (cm)	WEIGHT (kg)	SURFACE FINISH
3560/5 to 3950/5	From 60 up to and including 150 cm increasing by 5 cm	50	5	120	Raw (to be cast upon)

CONCRETE TYPE	CONCRETE QUALITY	STEEL QUALITY	CONCRETE COVER	SURFACE FINISH
Earth dry	C45/55	DE500BS	25 mm	Regrinded with fine quartz sand
